MJWI20 Series DC-DC Converter 20W Highest Power Density Module MJWI20-24S05 MJWI20-24S12


Typical applications:
these converters are battery operated equipment, instrumentation, distributed power architectures in communication and industrial
electronics and other space critical applications.


PRODUCT OVERVIEW :


TThe MJWI20 series is a new generation of high performance DC-DC converter modules setting a new standard concerning power density. The
product offers fully 20W in a shielded metal package with dimensions of just 1.0"x1.0"x 0.4". All models provide ultra-wide 4:1 input voltage range and tight
output voltage regulation.
State-of the-art circuit topology provides a very high efficiency up to 89% which allows an operating temperature range of -40℃ to +85℃.


Further features
include remote On/Off, trimmable output voltage, overload, over voltage and short circuit protection and safety approval UL/cUL/IEC/EN 62368-1(60950-1) with CB report and CE marking.


MJWI20-24S05 MJWI20-24S12 MJWI20-24S033 MJWI20-24S15 MJWI20-24S24 MJWI20-24D12 MJWI20-24D15 MJWI20-48S033 MJWI20-48S05 MJWI20-48S12 MJWI20-48S15

MJWI20-24S05 MJWI20-24S12 MJWI20-24S033 MJWI20-24S15 MJWI20-24S24 MJWI20-24D12 MJWI20-24D15 MJWI20-48S033 MJWI20-48S05 MJWI20-48S12 MJWI20-48S15MJWI20-24S05 MJWI20-24S12 MJWI20-24S033 MJWI20-24S15 MJWI20-24S24 MJWI20-24D12 MJWI20-24D15 MJWI20-48S033 MJWI20-48S05 MJWI20-48S12 MJWI20-48S15


FEATURES
►Smallest Encapsulated 20W Converter
►Ultra-compact 1" X 1" Package
►Ultra-wide 4:1 Input Voltage Range
►Fully Regulated Output Voltage
►Excellent Efficiency up to 89%
►I/O Isolation 1500 VDC
►Operating Ambient Temp. Range -40℃ to +85℃
►No Min. Load Requirement
►Overload/Voltage and Short Circuit Protection
►Remote On/Off Control, Output Voltage Trim
►Shielded Metal Case with Insulated Baseplate


Type:Encapsulated
Isolation:Isolated
No of Outputs:Single
Output Power:20W
Output Voltage:24V 48V 12V
Operating Temp Range:-40°C to +85°C
Efficiency:89%
Name20W Highest Power Density Module
Dimensions1.0"x1.0"x 0.4"
Package Style:DIP
Mounting Method:Through Hole

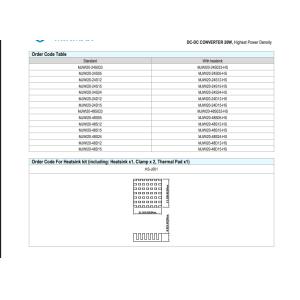

More product part numbers:

MJWI20-24S033
MJWI20-24S05
MJWI20-24S12
MJWI20-24S15
MJWI20-24S24
MJWI20-24D12
MJWI20-24D15
MJWI20-48S033
MJWI20-48S05
MJWI20-48S12
MJWI20-48S15
MJWI20-48S24
MJWI20-48D12
MJWI20-48D15
