    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Ask Lasest Price
    Brand Name : OEM
    Model Number : CH340 ATMEGA328 Development Board
    Certification : ROHS
    Price : Negotiated
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 5000pcs
    Delivery Time : 5-14days
    • Product Details
    • Company Profile

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    UNO WiFi R3 ATmega328P ESP8266 32Mb flash USB-TTL CH340G Micro-USB Arduino


    UNO WiFi R3 ATmega328P ESP8266 32Mb flash USB-TTL CH340G Micro-USB

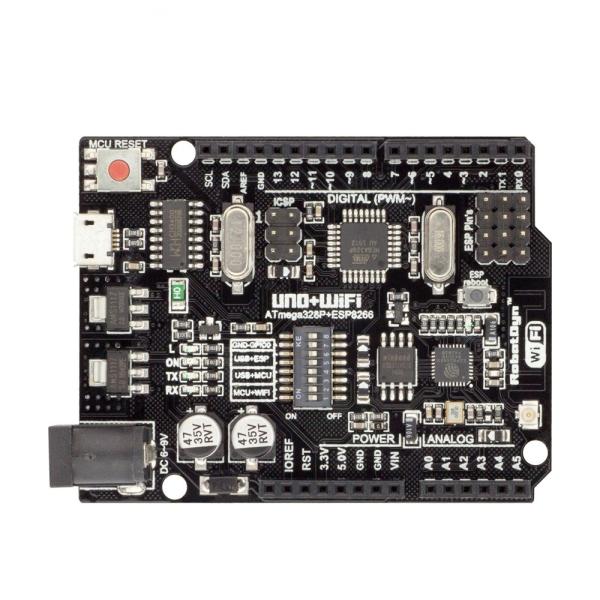

    It is a customized version of the classic ARDUINO UNO R3 board. Full integration of microcontroller Atmel ATmega328 and IC Wi-Fi ESP8266 with 32 MB flash memory, and USB-TTL converter CH340G on one board. All modules can work together or independently.

    On the board where the switch of mode of operation with 8 position:

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    After choosing the mode of the board can proceed to setting up the IDE

    It is important that when the ESP8266 module is programming, it is necessary to press the button “ESP Reboot”

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Switch status and mode selection:

    12345678
    CH340 connect to ESP8266 (upload sketch)OFFOFFOFFOFFONONONNoUSE
    CH340 connect to ESP8266 (connect)OFFOFFOFFOFFONONOFFNoUSE
    CH340 connect to ATmega328 (upload sketch)OFFOFFONONOFFOFFOFFNoUSE
    Mega328+ESP8266ONONOFFOFFOFFOFFOFFNoUSE
    All modules work independentOFFOFFOFFOFFOFFOFFOFF

    NoUSE

    To begin open the Arduino IDE programming environment and go to settings:

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Then in the window that appears in the row Additional Boards Manager URLs (marked in red) insert http://arduino.esp8266.com/stable/package_esp8266com_index.json link for installation in Arduino IDE additional scripts that would work with the modules ESP8266, and click OK

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Then go to the Tools> Board> Boards Manager

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    In the window that appears, scroll through the list down to the script esp8266 by ESP8266 Community and click.

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    In the lower right corner will be able to select the version of the software, select the version 2.1.0 (the newest) and click the Install button

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board


    After installation, close the window and go to Tools> Board and see the list of available devices on the chip programming ESP8266

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Next, you need to select the card as shown in the picture (Generic ESP8266 module)

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board

    Select the upload speed - 115200

    ATmega328P ESP8266 UNO WiFi R3 Arduino Development Board


    CategoryDevelopment Boards, Kits, Programmers
    FamilyWifi Development Board
    Main ChipATMEGA328 +CH340
    Board TypeEvaluation Platform
    TypeMicro-USB
    Output3.3V-5V
    Utilized IC / PartATmega328P ESP8266 CH340G
    Mounting TypeFixed
    PlantUNO WiFi R3
    ContentsBoard(s)+ Cable
